The Relationship Between 6-DOF Platforms and Racing Simulators

A 6-DOF (6 Degrees of Freedom) platform is the core hardware that delivers an ultra-realistic motion experience for high-end racing simulators. The two have a subordinate and integrated relationship — the platform acts as the motion actuator, while the simulator represents the complete simulation system.

1. Basic Definitions & Core Relationship

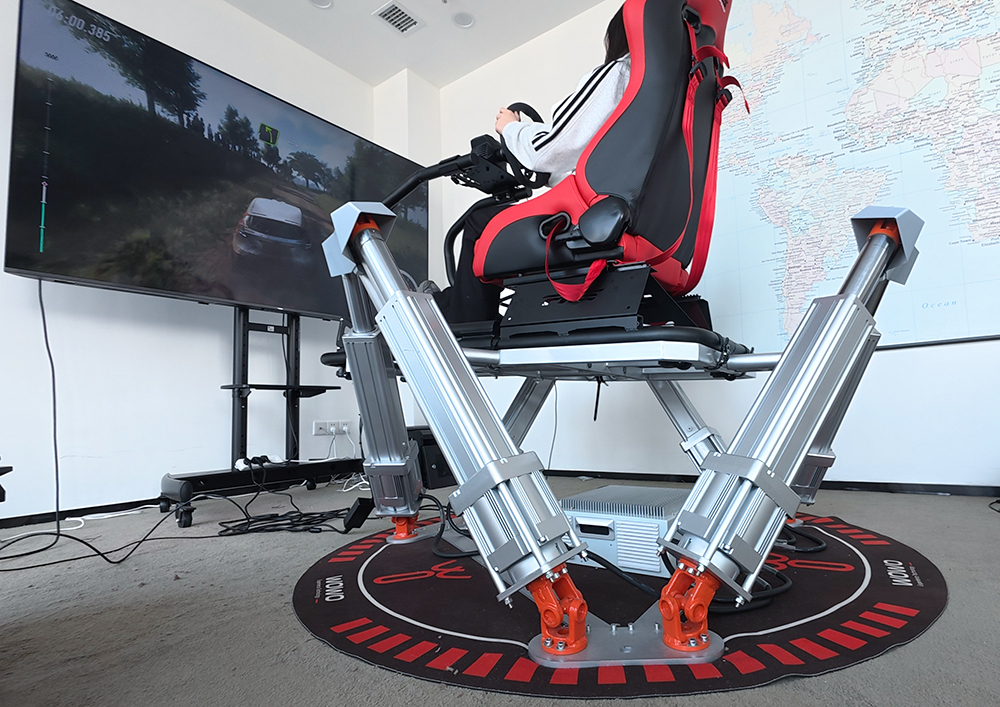

6-DOF Platform (Stewart Platform)
A parallel mechanical structure driven by 6 electric or hydraulic cylinders. It achieves 3 translational movements (surge, sway, heave) + 3 rotational movements (pitch, roll, yaw), serving as a precision motion execution mechanism.
Racing Simulator
A complete immersive system consisting of simulation software, input peripherals (steering wheel, pedals), display & audio systems, and a motion platform. Its purpose is to realistically replicate driving visuals, controls, and physical sensations.
Essential Relationship
The 6-DOF platform is the motion core of high-end racing simulators. It converts real-time vehicle dynamics (acceleration, braking, cornering, bumps) into physical motion, enabling true immersion rather than just visual simulation.
2. Key Role of 6-DOF Platforms in Racing Simulators
Reproduce realistic vehicle motion
Simulate pitch under acceleration/braking, roll during cornering, heave from road unevenness, and yaw during drifting or spinning. It lets the driver physically feel weight transfer, tire grip limits, and suspension movement.
Create a fully immersive experience
Works with force feedback, triple-screen/VR displays, and surround sound to form a complete sensory loop (sight, touch, motion, sound), greatly enhancing realism.
Define simulator levels
Entry-level: Only cockpit & peripherals, no motion
Mid-range: 3-DOF platform (pitch, roll, heave)
High-end / Professional: 6-DOF platform for full motion simulation, used in professional driver training and automotive R&D.
3. How They Work Together
Driver inputs steering and pedal signals to the computer.
Simulation software calculates real-time vehicle dynamics and G-forces.
The motion controller converts data into extension commands for the 6 actuators.
The 6-DOF platform moves the cockpit to match vehicle attitude.
The driver adjusts inputs based on physical feedback, forming a closed control loop.
4. Application Value
Professional use: Professional racing training, vehicle chassis development, ADAS testing, driver education.
Entertainment & E-sports: High-end experience centers and enthusiast setups that deliver near-real racing sensations.
